LCD-38-6-R350-LTC

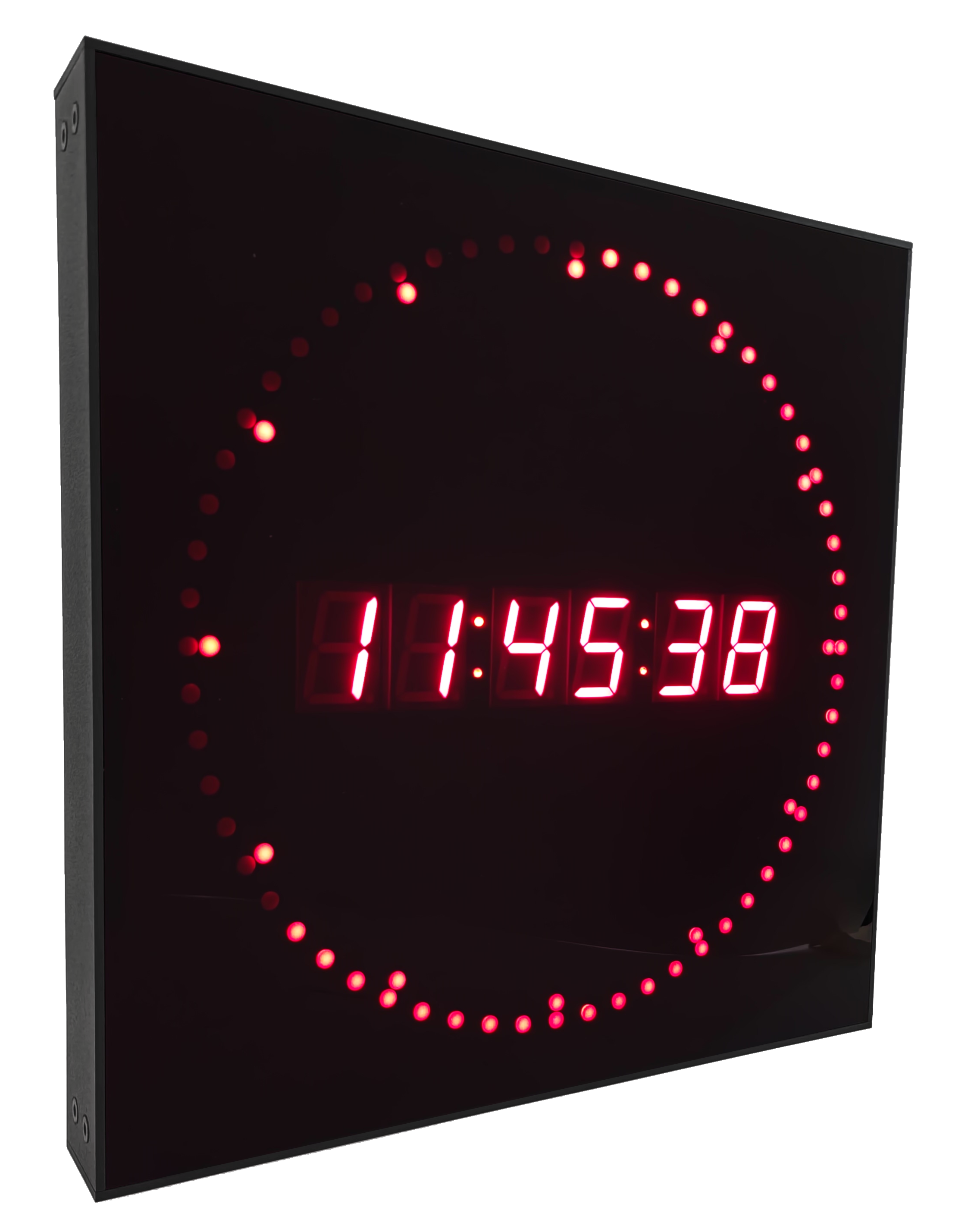

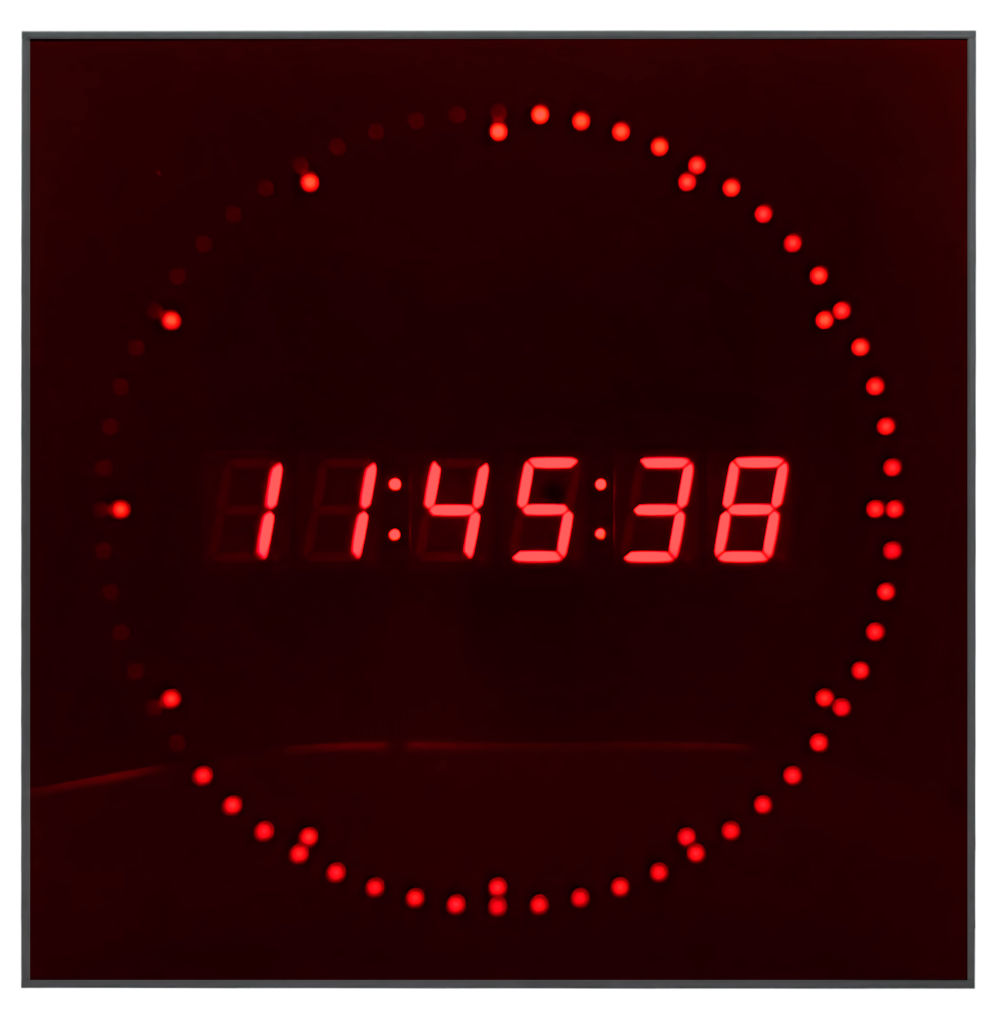

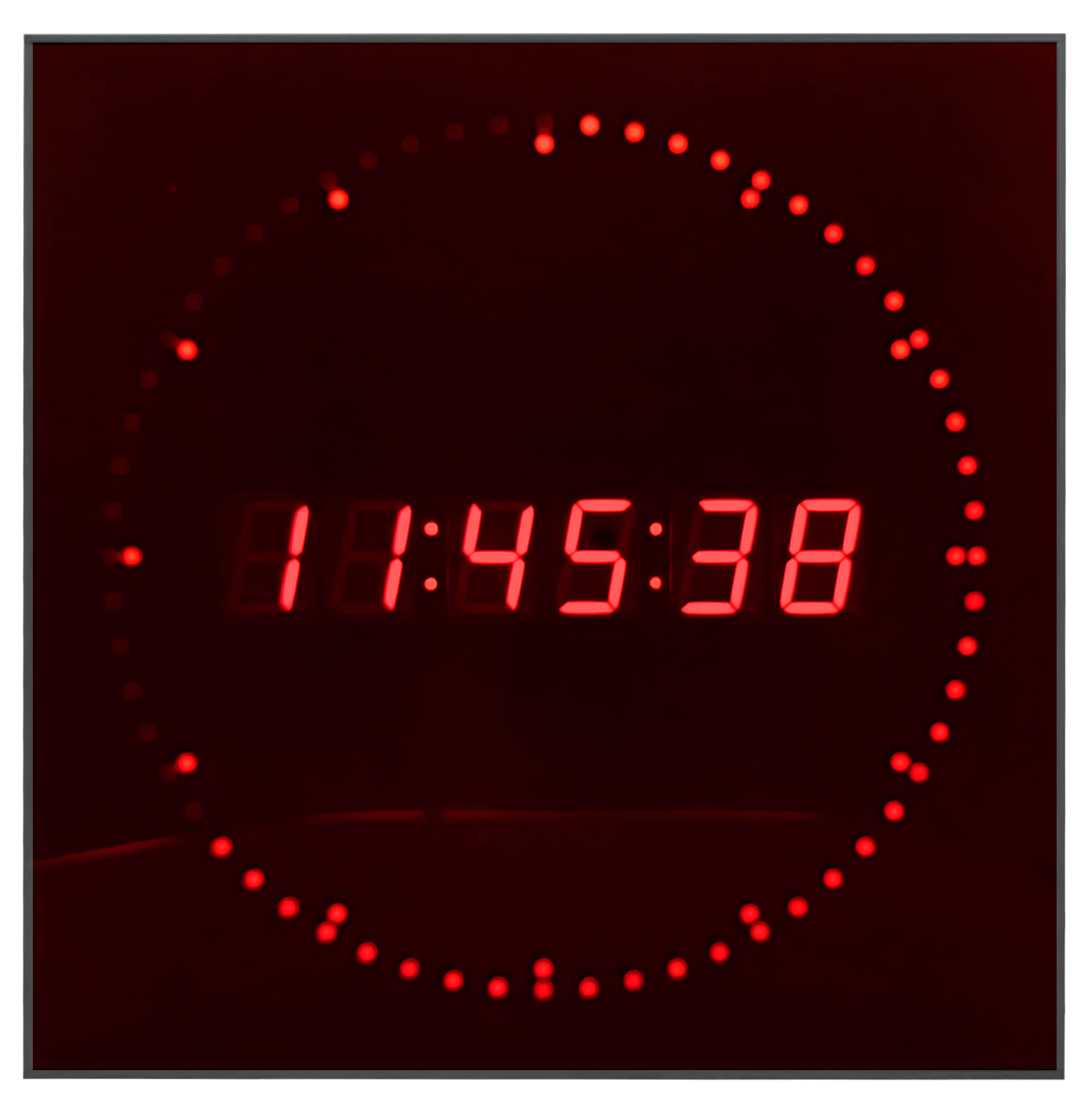

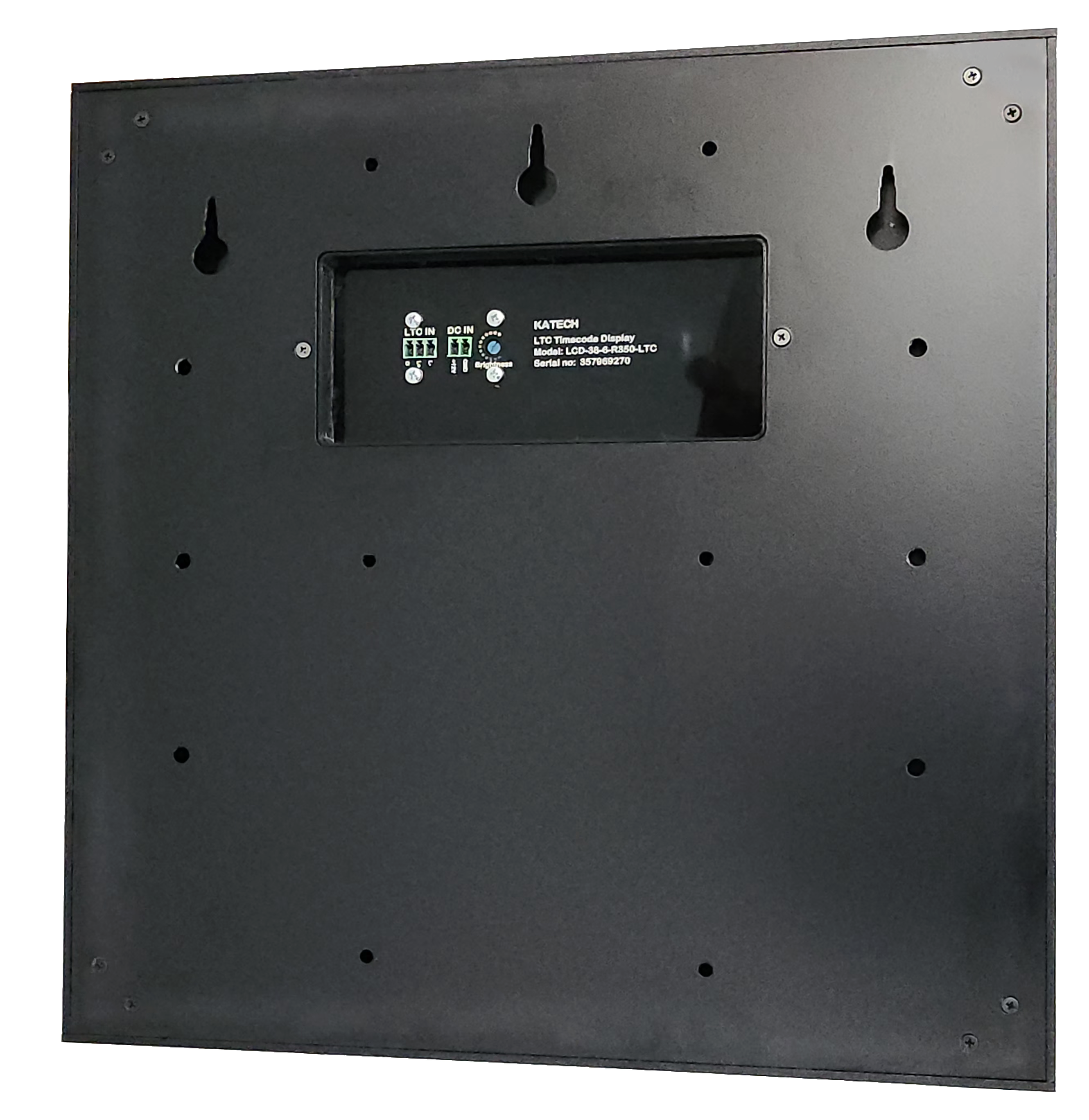

KATECH LCD-38-6-R350-LTC is a high-end LTC (Linear Timecode) display designed for broadcast studios and control rooms, standing out with its sharp-lined square form. Blending digital display clarity with traditional clock aesthetics, the device allows intuitive tracking of time flow with its circular analog seconds display surrounding the central 6-digit red LED panel. While offering seamless synchronization with main systems through its secure LTC IN input on the rear panel, the screen light can be easily optimized for the studio environment thanks to the integrated brightness pot; it adds a luxurious and modern touch to professional spaces with its minimalist square design and smooth black front surface.
Features
- Input: Balanced LTC Time Code (for synchronized time tracking)
- Display: 6-Digit 7-Segment LED – HH:MM:SS, with Circular Seconds LED indicator
- Character Height: 38 mm
- Dimensions: 350 x 350 x 45.5 mm, 2.7 kg
- Power Supply: 12V DC, 700 mA
- Mounting: Wall mount connection holes available
- Brightness Adjustment: Display brightness is adjustable according to the ambient environment.
- Color Options: Custom production on request – different digit color choices such as green, blue, etc.
- Applications: Studios, control rooms, live broadcast, video production systems
- Certification & Warranty: CE certified, 2-year warranty
